Product Summary
The SP8K2FTB is a switching transistor. It can be used in power switching and DC / DC converter.
Parametrics
SP8K2FTB absolute maximum ratings: (1)Drain-source voltage: 30 V; (2)Gate-source voltage: 20 V; (3)Drain current: +/-6.0 A or +/-24 A; (4)Source current: +/-1.6 A or +/-6.4 A; (5)Total power dissipation: 2 W; (6)Channel temperature: 150°C; (7)Storage temperature: -55 to +150 °C.
Features
SP8K2FTB features: (1)Fast Switching and Propagation Speeds; (2)High ON/OFF Output Voltage Ratio; (3)Low Crosstalk Between Switches; (4)Diode Protection on All Inputs/Outputs; (5)Wide Power supply Voltage Range (VCC ?GND) = 2.0 to 6.0 Volts; (6)Analog Input Voltage Range (VCC-GND) = 2.0 to 6.0 Volts; (7)Improved Linearity and Lower ON Resistance over Input Voltage than the MC14016 or MC14066; (8)Low Noise; (9)Chip Complexity: 44 FETs or 11 Equivalent Gates.

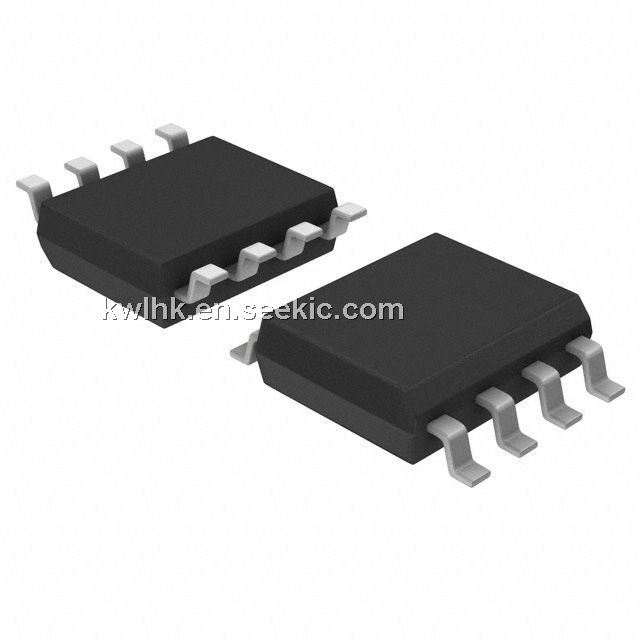

Diagrams
